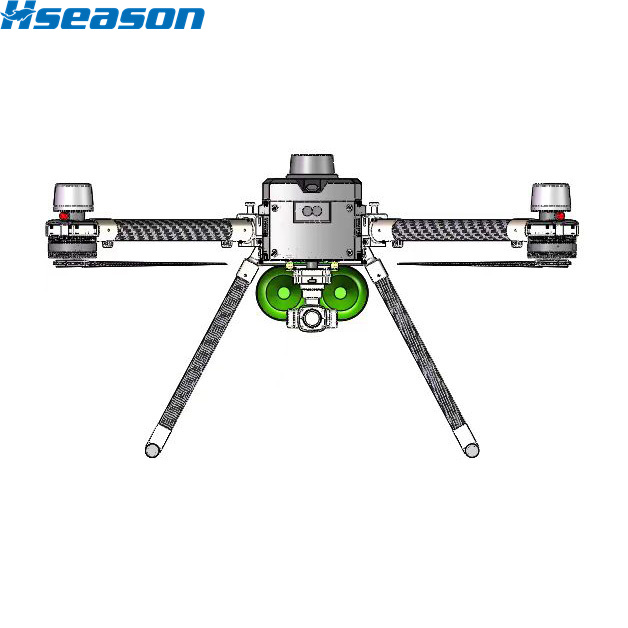

HD5-RTK Drone

Availability:
Quantity:

HD5-RTK Drone Features

1. Easy to operate

2. Light weight, small structure, easy to carry

3. Long flight time

4. Support the RTK function

5. Using dual GPS orientation, the flight is safer

6. Use smart battery solution, the operation is easier

7. Support for mainstream remote control

8. With a quick disassembly interface, suitable for a variety of loads

9. Support modification on the existing basis

10. Rich mounting devices

HD5-RTK Drone

aerobat


size

Size (spread, excluding blade) 594594320mm (length, width and height)

Size (folded, including paddle blade) 240230408 mm (length, width and height)

Folding type

Simple folding without disassembly

Symmetric motor wheelbase

750mm

weight

Empty machine weight (excluding battery): 1.7kg

Weight of air machine (including battery): 3.75 kg

Original mount maximum load

3kg

maximum take-off weight

9kg

Work frequency band

5180-5875MHz

perpendicular:


± 0.5 m (when the GPS is working normally)

± 0.1 m (when the RTK positioning is working normally)

horizontal:


± 1.5 m (when the GPS is working normally)

± 0.1 m (when the RTK positioning is working normally)

RTK positional accuracy

At the RTK FIX:


1 cm + 1 ppm (horizontal)

1.5 cm + 1 ppm (vertical)

Maximum rotational angular speed

Elevation shaft: 100 ° / s


Heading axis: 100 ° / s

Maximum pitch angle

30 °

Maximum rate of rise

5m/s

Maximum descent speed (vertical)

2.5m/s

Maximum tilt-down speed

Automatic mode: 7 m/s

Maximum horizontal flight speed

Automatic mode: 13 m/s

Level-setting mode: 15 m/s

Maximum flight altitude

4000m (takeoff weight 6kg)

Maximum speed can withstand wind speed

10m/s

Maximum flight

75min

In the load of 500g

55min

In the 1,600 g 40min

Adapted cloud platform

Custom improvement

Support the cloud head installation mode

Lower single head, lower double head

GNSs

GPS+GLONASS+BeiDou+Galileo

operating ambient temperature

-20 °C to 50 °C

Lidar ranging

Measuring the fan

Around

0.2m-8m@90% reflectivity (0 klux)

0.2m-2.5m@10% Reflectivity (0 klux)

0.2m-2.5m@10% Reflectivity (90 klux outdoors)

accuracy

±6cm@(0.2m-3m)³

±2%@(3m-8m)

Distance points

Differentiation rate

1cm

frame rate

1-250Hz (Adjustable)

Anti-environment

Light ability

70Klux

Intelligent battery

model

B20

capacity

20000mAh

voltage

26.1V

Battery type

LiPo  6S

Total battery weight

About 2.05kg

operating ambient temperature

-15℃ to 60℃

Ideal storage environment temperature

From 22℃ to 30℃

charging interval

Using the original charger, the single battery charging time is about 4 hours

Smart battery charger

outline dimension

178×80×46 mm

weight

About 0.45kg

input voltage

110V-240V

output power

130W

output voltage

26.1V

Outputs the maximum current

7A

charging interval

45min

work environment

-20℃ to 40℃
