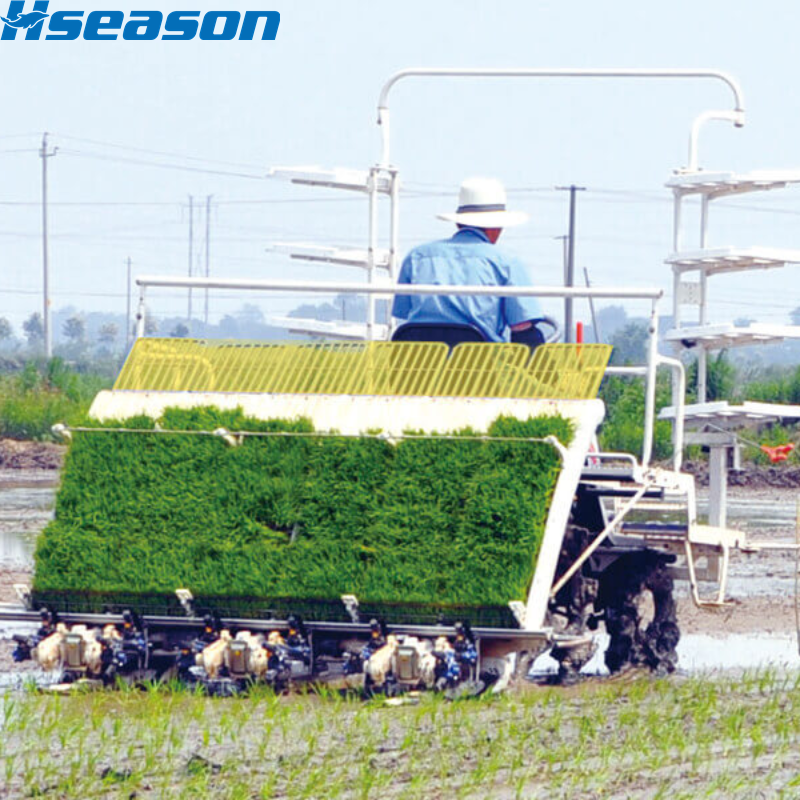

Automatic driving, automatic operation, saving labor; can automatically start and stop the clutch to adjust the height of the planting section; simulate the optimal manual work path, zero pressure seedlings.
Unique Z rotation function. Automatic lifting and lowering of the planting section, automatic planting, automatic line marking, higher intelligence, faster planting efficiency
Multi-functional operation handle. One handle can control the up and down of the insertion part, the clutch of the insertion clutch, and the micro-drop of the insertion part, which is easy and convenient to operate.
Good passability. Independent front wheel damping, high ground clearance, equipped with ultra-low speed gear, better passability in wet and rotten fields.
High horsepower engine with strong power. Unique mid-engine technology, Shimoda is not easy to enter the water, good safety.
2.99 square meters of enlarged and wider visibility treads to both monitor the path and place more seedlings
Automatic horizontal control. More advanced automatic level control function of the planting section. More in line with the scientific transplanting of rice.
| Product Model | PZ80-AHDRT25 | |
| Size | Length*width*height(mm) | 3174*2370*2455 |
| Minimum ground clearance(mm) | 440 | |
| Body weight(kg) | 860 | |
| Engine | Model | E3112(Inoue Pass) |
| Type | Water-cooled 3T4 medium-range diesel engine | |
| Total exhaust volume(Lt cC ) | 1.123 (1123) | |
| Output power/speed(kw (ps)/rpm) | 15.3(20.8)/2500 | |
| Traveling section | Steering mode | Hydraulic |
| Wheelbase(mm) | 1100 | |
| Transmission mode | Hydraulic stepless variable speed HST | |
| Number of gears(gear) | Forward 3, backward 3 (walking, planting, low speed) | |
| Drive type | Four-wheel drive | |
| Interpolation section | Number of planting rows(rows) | 8 |
| Planting row spacing(cm) | 25 | |
| Planting spacing(cm) | 25, 22, 18, 17, 16, 15, 13, 11 | |
| Planting depth(mm) | 20~50(7 gears) | |
| Other configurations | Exhaustion of seedlings | Yes |
| Computerized version | Yes | |
| Microcomputer detection | Yes | |
| Automatic turning lift(Z rotation) | Yes | |
| Automatic scribing(Z rotation) | Yes | |
| Automatic seedling inserting(Z rotation) | Yes | |
| Planting balance device | Yes | |
| Automatic adjustment of planting depth | Yes | |
| Multi-functional operation handle | Yes |
