High-quality engine
Equipped with a high-horsepower and high-quality engine, low vibration, low noise, low fuel consumption, high reliability and longer service life.
The operation handle is centrally configured, and the machine can be easily controlled while working.
Tear-off seedling needle, wear-resistant and reliable, does not hurt the seedlings, and returns to youth quickly.

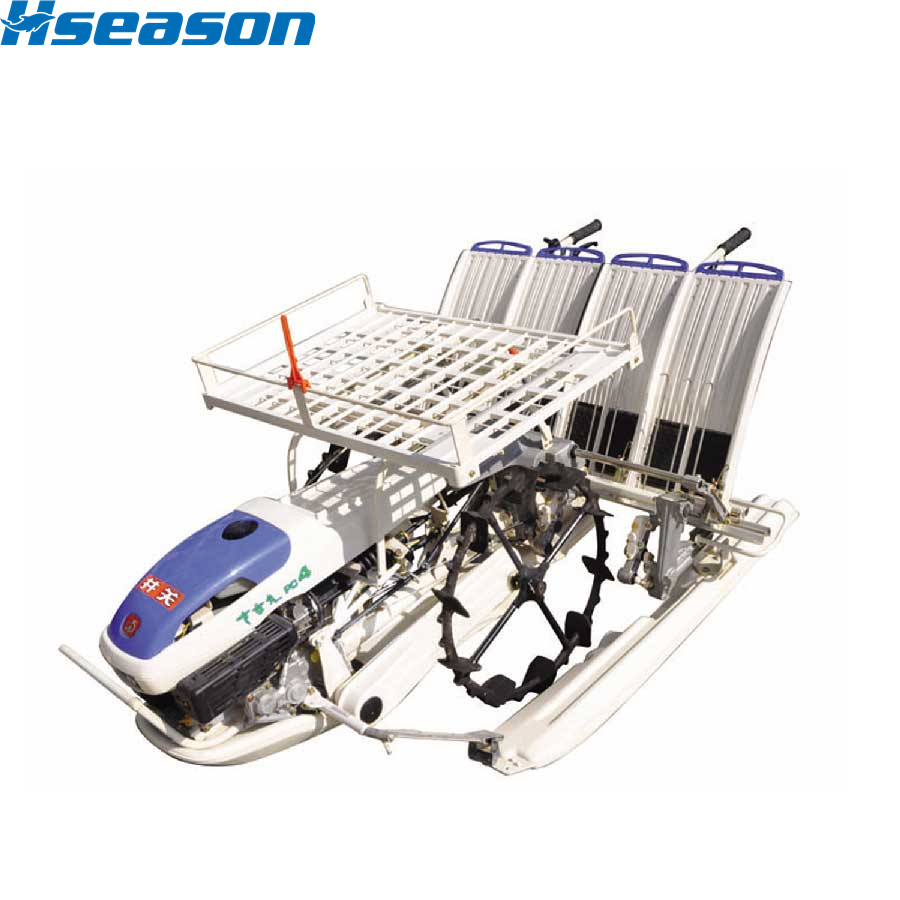

| Product Model | PC4 | ||
| Body size | Length (mm) | 2180 | |
| Width (mm) | 1500 | ||
| Height (mm) | 930 | ||
| Body weight (kg) | 155 | ||
| Engine | Model | FJ180G Kawasaki | |
| type | Air-cooled 4-stroke 1-cylinder OHV gasoline engine | ||
| Power/rotation speed (kw/ps/rpm) | 2.9 (4.0)/1600 maximum (5.5) | ||
| Displacement (cc) | 179 | ||
| Fuel tank capacity (L) | 3.2 | ||
| Starting method | Hand-held recoil type | ||
| Walking department | Wheel form | Rubber non-slip wheels | |
| Wheel outer diameter (mm) | 660 | ||
| Wheel track (mm) | 640 | ||
| Variable speed mode | Mechanical variable speed | ||
| Working speed (m/s) | 0.77 | ||
| Number of gears | Forward 2 gears.Rear gear 1st gear | ||
| Body up and down adjustment | Hydraulic automatic adjustment up and down | ||
| Insertion Department | Insertion method | Crank rocker type | |
| Number of rows inserted | 4 | ||
| Insertion spacing (mm) | 300 | ||
| Insertion distance (cm) | 14, 16, 18 | ||
| Number of plants inserted (plant/3.3㎡) | 80, 70, 60 | ||
| Insertion depth (cm) (file) | 0.4--4 (7 gears) | ||
| Seedling needle form | Alloy steel die-cast seedling needle | ||
| Adjustment of the number of plants per hole | Adjustment of the number of plants per hole, horizontal transfer amount (mm) | 15.6,14.0,11.7 | |
| Number of horizontal transfers (times) | 18,20,24 (3 gears) | ||
| Longitudinal adjustment amount (mm) | 8~19 | ||
| Large plant spacing corresponds to the width of the seedling mouth (mm) | none | ||
| Automatic balancing device | none | ||
| Working efficiency (mu/hour) (varies depending on the field) | Maximum 3 | ||
