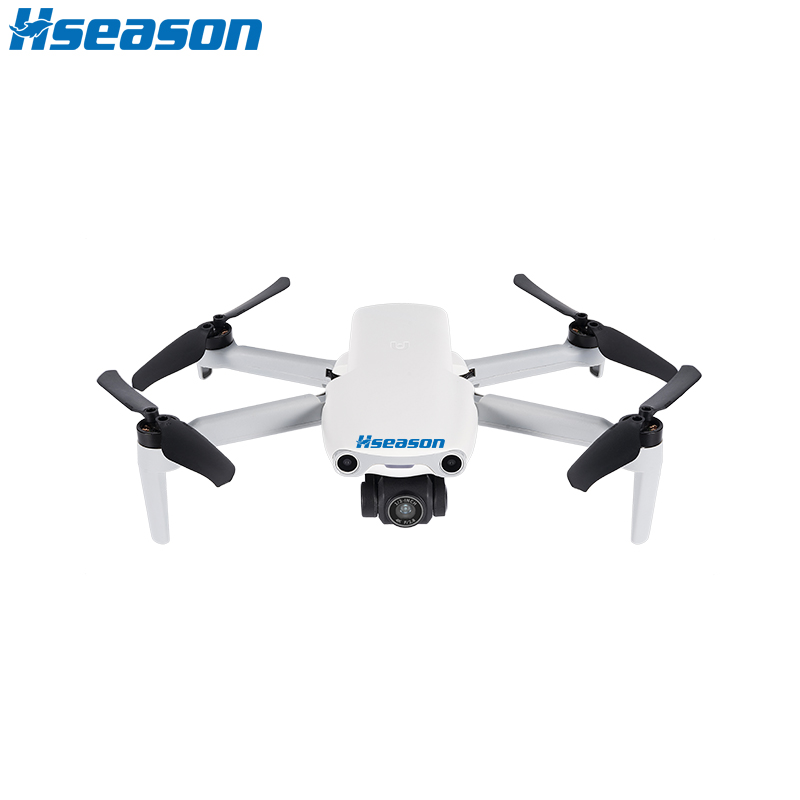

| EVO Nano Series Specification | ||
| Aircraft | Takeoff weight | 249g |
| Dimensions (including blades) | Folded: 142×94×55mm Unfolded: 260×325×55mm | |
| Wheelbase | 231mm | |
| Max ascent speed | 6m/s (sport), 4m/s (standard), 3m/s (smooth) | |
| Max descent speed | 4m/s (sport), 3m/s (standard), 2m/s (smooth) | |
| Max level flight speed(no wind, near sea level) | 15m/s (sport), 10m/s (standard), 5m/s (smooth) | |
| Max takeoff altitude | 4000m | |
| Max flight time (no wind) | 28min | |
| Max hovering time (no wind) | 26min | |
| Max flight distance (no wind) | 16.8km | |
| Max wind resistance | Level 5 | |
| Max tilt angle | 33°(sport), 25°(standard), 25°(smooth) | |
| Max angular velocity | 200°(sport), 120°(standard), 60°(smooth) | |
| Operating temperature | 0°C ~ 40°C | |
| Operating frequency | 2.400-2.4835GHz，5.725-5.850GHz,5.150-5.250GHz | |
| Transmission power (EIRP) | FCC:≤30dBm；CE:≤20dBm | |
| GNSS | GPS, GLONASS, Galileo | |
| Hovering accuracy | Vertical:±0.1m (when the visual positioning is active), ±0.5m (with GPS positioning); Horizontal:±0.3m (when the visual positioning is active), ±1.5m (with GPS positioning); | |
| Gimbal | Mechanical range | Pitch: -125°~35° Roll: -34°~33° Yaw: -25°~25° |
| Controllable range | Pitch: -90°~ 0° | |
| Stabilization | 3-axis | |
| Max control speed (pitch) | 30°/s | |
| Angular vibration range | ±0.003° | |
| Perception system | Forward | Accurate measurement range：0.5~16m Effective sensing speed：<10m/s FOV：Horizontal<40°,Vertical<30° |
| Backward | Accurate measurement range：0.5~18m Effective sensing speed：<12m/s FOV：Horizontal<40°,Vertical<30° | |
| Downward | Accurate measurement range：0.5~20m Visual hovering range：0.5~40m FOV：Horizontal<40°,Vertical<30° | |
| Operating environment | Forward, backward: Surface with clear pattern and adequate lighting(lux> 15) Downward: Surface with clear pattern and adequate lighting(lux> 15); Detects diffuse reflective surfaces(>20%) (walls, trees, people, etc.) | |
| Camera (Nano) | Sensor | CMOS：1/2 inch Effective pixels：48M Pixel size：1.6μm*1.6μm（Bin2） |
| Lens | FOV：84° Equivalent focal length：24mm Aperture：f/2.8 Focus range：1m ~ ∞ Focus mode: fixed focus | |
| Shooting mode | Automatic mode (P gear): EV adjustable, ISO/Shutter automatic Manual mode (M gear): ISO/Shutter adjustable, EV not adjustable Shutter priority (S file): Shutter/EV adjustable, ISO automatic | |
| ISO range | Video：ISO100 ~ ISO3200 Photo：ISO100 ~ ISO3200 | |
| Shutter speed | Photo Mode：1/8000 ~ 8s Other：1/8000 ~ 1/frame rates | |
| Portrait blur | Real-time image transmission portrait blur and photo portrait blur | |
| Defog mode | Support | |
| Zoom range | Digital zoom：1 ~ 16 times | |
| Photo format | JPG(8-bit) / DNG(10-bit) / JPG+DNG | |
| Photo resolution | 48MP：8000x6000（4:3） 12MP（default）：4000x3000（4:3） 4K：3840x2160（16:9） | |
| Photo shooting mode | Single shot Burst shooing: 3/5 Auto exposure bracketing(AEB): 3/5 shots Interval: 2s/3s/4s/5s (default)/6s/.../60s (DNG min 5s) HDR imaging: 3840x2160 | |
| Video coding format | H265/H264 | |
| Video resolution | 3840x2160 p30/25/24 2720x1528 p30/25/24 1920x1080 p60/50/48/30/25/24 HDR: 3840x2160 p30/25/24 2720x1528 p30/25/24 1920x1080 p60/50/48/30/25/24 | |
| Max bitrate | 100Mbps | |
| Timelapse | Original image:3840*2160，JPG/DNG Video: 4K P25 | |
| Panorama | Horizontal/Vertical/Wide-angle/Spherical Original image: 4000*3000, JPG/DNG | |
| Supported file system | Fat32、exFat | |
| Video format | MP4/MOV(8-bit) | |
| WIFI transfer | 20MB/s | |
| Camera (Nano+) | Sensor | CMOS：1/1.28 inch Effective pixels：50MP Pixel size: 2.44μm*2.44μm (Bin2) |
| Lens | FOV: 85° Equivalent focal length: 23mm Aperture: f/1.9 Focus range: 0.5m ~ ∞ Focus mode:：PDAF+CDAF/MF | |
| Shooting mode | Automatic mode (P gear): EV adjustable, ISO/Shutter automatic Manual mode (M gear): ISO/Shutter adjustable, EV not adjustable Shutter priority (S file): Shutter/EV adjustable, ISO automatic | |
| ISO range | Video：ISO100 ~ ISO6400 Photo：ISO100 ~ ISO6400 | |
| Shutter speed | Photo Mode：1/8000 ~ 8s Other：1/8000 ~ 1/frame rates | |
| Portrait blur | Real-time image transmission portrait blur and photo portrait blur | |
| Defog mode | Support | |
| Zoom range | Digital zoom：1 ~ 16 times | |
| Photo format | JPG(8-bit) / DNG(10-bit) / JPG+DNG | |
| Photo resolution | 50MP：8192x6144（4:3） 12.5MP（default）：4096x3072（4:3） 4K：3840x2160（16:9） | |
| Photo shooting mode | Single shot Burst shooing: 3/5 Auto exposure bracketing(AEB): 3/5 shots Interval: 2s/3s/4s/5s (default)/6s/.../60s (DNG minimum 5s) HDR imaging: 3840x2160 | |
| Video coding format | H265/H264 | |
| Video resolution | 3840x2160 p30/25/24 2720x1528 p30/25/24 1920x1080 p60/50/48/30/25/24 HDR: 3840x2160 p30/25/24 2720x1528 p30/25/24 1920x1080 p60/50/48/30/25/24 | |
| Max bitrate | 100Mbps | |
| Timelapse | Original image：3840*2160，JPG/DNG Video：4K P25 | |
| Panorama | Horizontal/Vertical/Wide-angle/Spherical Original image: 4096*3072, JPG/DNG | |
| Supported file system | Fat32、exFat | |
| Video format | MP4/MOV(8-bit) | |
| WIFI transfer | 20MB/s | |
| Remote controllor and image transmission | Operating frequency | 2.400-2.4835GHz，5.725-5.850GHz,5.150-5.250GHz |
| Max transmission distance (unobstructed, free of interference) | FCC：10km；CE：5km | |
| Operating temperature | 0°C ~40°C | |
| Transmission power (EIRP) | FCC:≤30dBm；CE:≤20dBm | |
| Battery capacity | 3930mAh | |
| Max battery life | ~ 2h (when charging a mobile phone) ~ 3h (when not charging to mobile phone) | |
| Interface type | Type C | |
| Transmission system | Autel SkyLink | |
| Realtime transmission quality | Transmission distance<1km：2.7K 30fps Transmission distance>1km：1080P 30fps | |
| Transmission bitrate | 90Mbps | |
| Transmission delay | ≤200ms | |
| Adapter | Input | 100-240V/50-60HZ |
| Output | 5V⎓3A,9V⎓3A,12V⎓2.5A | |
| Rated power | 30W | |
| Aircraft battery | capacity | 2250mAh |
| Voltage | 7.7V | |
| Max charging voltage | 8.8V | |
| Battery Type | Li-Po 2S | |
| Energy | 17.32Wh | |
| Charging temperature | 5~45℃ | |
| Single battery charging time | 90min | |
| Max charging power | 30W | |
| App | Mobile App | Autel Sky |
| Mobile system required | iOS 13.0 and above Android 6.0 and above | |
| Storage | Built-in storage | No |
| SD storage | max. support 256GB（UHS-3 rating required） | |
